Measuring Circuits: Multimeter Basics and Safety

Your Primary Tool for Debugging Circuits

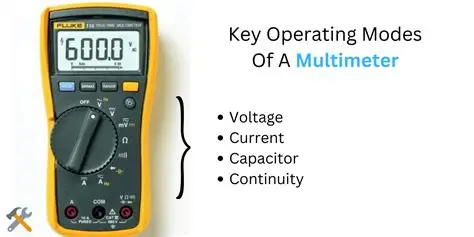

multimeter image

A multimeter is your primary tool for debugging circuits. It measures voltage, current, and resistance, and checks for continuity. Understanding how to use it properly is essential for every electronics engineer!

Why Multimeters Matter

A multimeter turns invisible electricity into visible numbers!

Without it, you're working blind:

❓ Is the battery dead?
❓ Is the circuit shorted?
❓ Is the resistor correct?
❓ Is current flowing?

With a multimeter, you KNOW!

🔧 Key Measurements

⚡ Measuring Voltage (V)

Voltage Measurement

Voltage measures the electrical pressure between two points.

Setup:

Set dial to V with DC symbol (⎓)
Red probe to positive point
Black probe to negative/ground
Multimeter connected in PARALLEL across component

Safe and non-destructive - can measure while circuit is powered!

What to Measure	Expected Value	Troubleshooting
Battery voltage	9V, 12V, etc.	< rated = weak battery
Power supply rail	5V, 3.3V	Wrong = supply failure
Across resistor	Depends on circuit	0V = no current
LED forward voltage	1.8V - 3.3V	0V = LED dead/reversed

Voltage Measurement Tips

✅ Always safe to measure voltage on live circuits

✅ Start with highest range if manual-ranging

✅ Positive to positive (red probe to higher voltage)

✅ Verify power is ON (for voltage measurement)

🌊 Measuring Current (A or mA)

Critical Setup for Current

Current measurement is the MOST DANGEROUS to get wrong!

Setup:

Set dial to A or mA (start with mA range)
Remove the multimeter from circuit
Break the circuit path
Insert multimeter IN SERIES with circuit
RED probe to higher voltage side
BLACK probe to lower voltage side

Can damage meter if range is wrong or connected in parallel!

How to Measure Current Correctly

Step-by-Step Current Measurement

Power OFF the circuit
Break the circuit where you want to measure current
Set multimeter to current mode (start with mA if current is small)
Connect in series:
- Red probe to the side closer to positive
- Black probe to the side closer to negative
Power ON and read the value
Power OFF and reconnect circuit normally

Circuit Type	Typical Current	Meter Setting
LED circuit	10-20mA	200mA range
Microcontroller	20-100mA	200mA range
Motor	100mA - 10A	Start with A range
Sensor	1-50mA	200mA range

Common Current Measurement Mistakes

❌ Connecting in PARALLEL - Will short the circuit and blow fuse!

❌ Wrong range selected - Can damage meter

❌ Forgetting to switch back to voltage mode after measuring current

✅ ALWAYS start with highest current range

✅ Work down to smaller ranges if needed

✅ Never exceed the meter's maximum rated current

🚧 Measuring Resistance (Ω)

Resistance Measurement Rules

MUST turn off power first!

Setup:

Set dial to Ω (ohms symbol)
Disconnect component from circuit (or turn off power)
Touch probes to both ends of resistor
Red and black probe order doesn't matter

Will give wrong readings if power is on or component is still in circuit!

Resistance Measurement Guide

Component	Expected Range	Notes
Resistor	Matches color code	±5% or ±1% tolerance
Wire/trace	< 1Ω	Higher = broken or corroded
Open circuit	OL (overload/infinite)	Broken connection
Short circuit	0Ω	Unintended connection
Diode (forward)	500Ω - 800Ω	One direction only
Diode (reverse)	OL (infinite)	Should not conduct

Resistance Measurement Tips

✅ Always power OFF before measuring

✅ Remove component from circuit for accurate reading

✅ Check for shorts by measuring between power and ground (should be high)

✅ Verify color codes on new resistors before installing

🔊 Continuity Test

Continuity Check

Tests if two points are electrically connected.

Setup:

Set dial to continuity symbol (usually looks like )))) or a diode)
Power OFF the circuit
Touch probes to two points
Beeps if connected (< 50Ω typically)
Stays silent if open circuit

Perfect for finding:

Broken wires
Bad solder joints
Short circuits
Trace damage on PCBs

What to Test	Expected Result	Problem if Wrong
Wire ends	Beep	Wire broken inside
PCB traces	Beep	Trace cut or damaged
Solder joints	Beep	Cold solder joint
Power to ground	Silent	Short circuit present
Switch (closed)	Beep	Switch contacts dirty
Switch (open)	Silent	Switch stuck closed

🖼️ Multimeter Diagram

Multimeter Functions

🛡️ Safety Rules - CRITICAL!

Safety First!

Follow these rules to avoid injury and equipment damage:

Always set the correct range (start high, adjust down)
Never measure current on high voltage without proper training
Always disconnect power before measuring resistance
Keep probes away from live circuits unless measuring voltage
Use proper safety equipment for circuits over 48V
Check meter fuse if readings seem wrong
Never exceed meter ratings (voltage, current, resistance)
Use CAT-rated meters for mains voltage work

Voltage Safety Levels

Voltage Level	Safety Category	Precautions
< 12V DC	Extra Low Voltage (ELV)	Generally safe, minimal shock risk
12-48V DC	Low Voltage	Use caution, can cause shock
48-120V	Dangerous	Requires training and safety equipment
> 120V AC/DC	Lethal	Professional training required, use CAT-rated meters

High Voltage Warning

Mains voltage (110V-240V AC) can KILL!

⚡ Only work on if you're trained
⚡ Use properly rated meters (CAT III or CAT IV)
⚡ One hand in pocket (prevents path across heart)
⚡ Wear insulated shoes
⚡ Never work alone
⚡ Turn off breaker if possible

When in doubt, hire a professional electrician!

🎯 Practical Tips

Probe Connection Guide

Multimeter Probe Tips

Standard connections:

Red probe = Positive / Measurement point / VΩmA port
Black probe = Ground / Reference / COM port

For high current (>200mA):

Move red probe to 10A port
Remember to move it back!

Auto-ranging meters:

Automatically select best range
More convenient for beginners
May be slower to stabilize

Manual-ranging meters:

You select the range
Faster readings
More forgiving of overload (analog meters)

Common Meter Features

Feature	Purpose	Usage Tip
Hold button	Freeze reading	Useful for tight spaces
Min/Max	Record extreme values	Find voltage spikes/dips
Auto-ranging	Select range automatically	Convenient but slower
True RMS	Accurate AC measurement	Essential for AC circuits
Backlight	See in dark	Battery drain concern
Auto-power-off	Save battery	Turn off if annoying

📊 Quick Reference: Measurement Summary

Measurement	Connection	Power State	Probe Polarity	Range Start
Voltage	Parallel	ON	Matters	Start high
Current	Series	Can be ON	Matters	Start highest
Resistance	Across component	OFF	Doesn't matter	Start high
Continuity	Touch points	OFF	Doesn't matter	N/A (beeps)

🔍 Troubleshooting with a Multimeter

Common Troubleshooting Scenarios

Circuit doesn't work:

✅ Check battery voltage (should match rating)
✅ Check continuity of wires
✅ Verify voltage at critical points
✅ Measure current (is anything flowing?)

LED doesn't light:

✅ Check voltage across LED (should be 1.8-3.3V)
✅ Check current (should be 10-20mA)
✅ Test LED continuity (one direction low, other high)
✅ Verify polarity (cathode to ground)

Resistor gets hot:

✅ Measure voltage across it
✅ Calculate power (P = V²/R)
✅ Check if exceeds power rating
✅ Measure resistance (might be wrong value)

Battery drains quickly:

✅ Measure current draw with everything off
✅ Should be near zero (< 1mA)
✅ High current = parasitic drain
✅ Check for shorts (resistance power to ground)

🔧 Maintaining Your Multimeter

Multimeter Maintenance

Keep your meter working reliably:

Check battery regularly
- Weak battery = inaccurate readings
- Replace annually or when "low bat" shows
Inspect probe leads
- Broken insulation = shock hazard
- Broken wire inside = intermittent readings
- Replace if damaged
Check fuses
- Blown fuse = meter won't work in current mode
- Keep spare fuses handy
- If fuses blow often, you're doing something wrong!
Calibrate occasionally
- Test with known voltages
- Professional calibration every 1-2 years for precision work
Store properly
- Turn off when not in use
- Keep probes from shorting
- Store in protective case

Remember

A multimeter is your window into the electrical world!

Voltage (V):

Measures electrical pressure
Connected in parallel
Safe while powered ON
Red to positive, black to ground

Current (A/mA):

Measures electron flow
Connected in series (break the circuit!)
Most dangerous to get wrong
Start with highest range

Resistance (Ω):

Measures opposition to flow
Power must be OFF
Remove component for accuracy
Probe order doesn't matter

Continuity:

Tests for connection
Beeps if connected
Power must be OFF
Find breaks and shorts

Safety is paramount:

Always start with highest range
Never measure current in parallel
Always power OFF for resistance
Respect high voltages
Keep meter maintained

Master your multimeter - it's the most important tool in your electronics toolkit!
