Measuring Circuits: Multimeter Basics and Safety

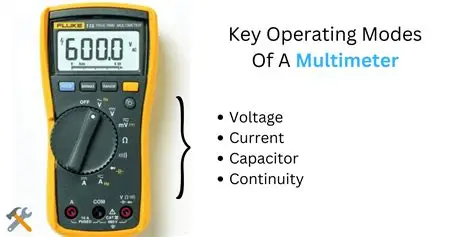

multimeter image

A digital multimeter is the first instrument you should reach for when a circuit does not behave as expected. It lets you answer basic but critical questions:

  • Is the supply actually present?
  • Is current flowing where it should?
  • Is a connection open or shorted?
  • Is a component close to its expected value?

This lesson focuses on low-voltage electronics. Mains measurement requires CAT-rated tools, training, and stricter safety practice than what is covered here.

Learning Objectives

By the end of this lesson, you should be able to:

  • choose the correct meter mode for voltage, current, resistance, and continuity;
  • connect the meter in the right place without damaging the meter or circuit;
  • interpret common readings such as open circuit, near-zero resistance, and voltage drop;
  • troubleshoot simple power, wiring, and component faults safely.

What a Multimeter Actually Measures

A multimeter does not "detect electricity" in a vague sense. Each mode changes the internal behavior of the meter:

  • Voltage mode measures potential difference between two points with very high input resistance.
  • Current mode places a very low-value internal shunt in the current path and measures the voltage across that shunt.
  • Resistance mode injects a small test current and estimates resistance from the resulting voltage.
  • Continuity mode is a fast resistance check that beeps below a threshold, often between 20 ohms and 50 ohms.

That is why a meter is safe across a live supply in voltage mode, but dangerous if accidentally switched to current mode.

Meter Ports and First-Use Checks

Most handheld meters have three or four jacks:

  • COM: black lead goes here.
  • VΩHz or similar: red lead for voltage, resistance, diode, and continuity.
  • mA or uA: red lead for small current measurements, usually fused.
  • 10A or 20A: red lead for higher current measurements, often fused for only a short time.

Before measuring anything:

  1. Inspect the probes for cracked insulation or loose tips.
  2. Confirm the red lead is in the correct port.
  3. Confirm the dial is in the intended mode.
  4. If the circuit is unknown, start with the highest manual range.
  5. For current measurement, think through the current path before making contact.

Voltage Measurement

Voltage is measured in parallel across two points.

V1: Device:Battery_Cell value="9 V source"
R1: Device:R value="1 k"
U1: Connector_Generic:Conn_01x02 value="Meter in V mode"

layout direction=LR gap=90
group SOURCE label="Source" direction=TB {
  V1
}
group LOAD label="Load" direction=TB {
  R1
}
group METER label="Voltmeter connection" direction=TB {
  U1
}

V1.1 --> R1.1
R1.2 --> global:0V
V1.2 --> global:0V
U1.1 --> R1.1
U1.2 --> global:0V

In voltage mode, the meter should disturb the circuit very little because its input resistance is high, commonly around 10 Mohm.

Practical procedure

  1. Put the black lead in COM and red lead in VΩ.
  2. Select DC volts for batteries, regulators, and most microcontroller circuits.
  3. Place the black probe on the reference node, usually ground.
  4. Place the red probe on the node you want to inspect.
  5. Read the sign and magnitude.

Typical interpretations

Measurement Expected result What a bad reading suggests
5 V regulator output 4.9 V to 5.1 V wrong regulator, overload, short, or no input
3.3 V rail 3.2 V to 3.4 V brownout, wrong setting, excessive load
Across a closed switch near 0 V more than a few hundred millivolts suggests poor contact
Across an LED roughly 1.8 V to 3.3 V depending on type 0 V may mean no current; too high may mean open circuit

[!TIP]
A negative reading usually means the probes are reversed, not that the circuit is "wrong."

Current Measurement

Current is measured in series by breaking the circuit and inserting the meter into the path.

V1: Device:Battery_Cell value="5 V source"
U1: Connector_Generic:Conn_01x02 value="Meter in A mode"
R1: Device:R value="220"
LED1: Device:LED value="LED"

layout direction=LR gap=90
group SOURCE label="Source" direction=TB {
  V1
}
group METER label="Ammeter inserted in series" direction=TB {
  U1
}
group LOAD label="Load" direction=LR {
  R1
  LED1
}

V1.1 --> U1.1
U1.2 --> R1.1
R1.2 --> LED1.A
LED1.K --> global:0V
V1.2 --> global:0V

If you place a meter in current mode directly across a source, you are nearly shorting that source through the meter's shunt resistor. That can blow the meter fuse, damage the probes, or damage the circuit under test.

Practical procedure

  1. Power down the circuit.
  2. Move the red lead to the correct current jack.
  3. Start with the highest current range if the expected current is unknown.
  4. Open the circuit at one point and connect the meter in series.
  5. Reapply power and read the value.
  6. When finished, move the red lead back to the voltage jack immediately.

Example

A 5 V source, red LED, and 220 ohm resistor should draw approximately:

$$
I \approx \frac{5.0 - 2.0}{220} = 13.6\ \text{mA}
$$

A reading near 0 mA suggests an open circuit or reversed LED. A reading far above expectation suggests a wiring error or wrong resistor value.

Resistance and Continuity

Resistance and continuity are measured only on de-energized circuits.

U1: Connector_Generic:Conn_01x02 value="Meter in continuity mode"
R1: Device:R value="Test path"

layout direction=LR gap=90
group METER label="Meter" direction=TB {
  U1
}
group PATH label="Path under test" direction=TB {
  R1
}

U1.1 --> R1.1
U1.2 --> R1.2

Why power must be off

In resistance mode the meter applies its own test stimulus. External voltage can corrupt the reading and, on some meters, damage the measurement front end.

Practical interpretations

Observation Likely meaning
OL, Open, or no beep open circuit or resistance above threshold
near 0 ohm short circuit or a good low-resistance path
resistor reads close to marked value component is probably correct
resistor reads much lower in-circuit than expected parallel paths are affecting the reading

Continuity mode is best used for:

  • tracing a wire from one end to the other;
  • checking whether a fuse is intact;
  • confirming a switch closes properly;
  • hunting for unintended shorts between power and ground before first power-up.

Voltage Drop as a Debugging Tool

New learners often measure only from a rail to ground. That is useful, but voltage-drop checks across components can be more revealing.

Examples:

  • Across a fuse: near 0 V when healthy and carrying current.
  • Across a closed transistor switch: a small drop when on; a large drop may suggest saturation loss or overload.
  • Across a wire or connector: ideally very small; a measurable drop under load may indicate corrosion, a weak crimp, or insufficient wire gauge.

Common Troubleshooting Workflow

For a simple "board is dead" problem:

  1. Measure source voltage.
  2. Measure the board input after reverse-polarity or fuse protection.
  3. Measure each regulated rail.
  4. Check resistance from each rail to ground with power off.
  5. Check continuity through suspicious connectors, switches, or fuses.
  6. Only then move to current measurement if the fault is still unclear.

Safety Guidance

  • Do not measure resistance or continuity on a powered circuit.
  • Do not switch modes while the probes are connected to a live circuit unless the manual explicitly permits it.
  • Treat current mode as high risk for user error.
  • Keep fingers behind probe guards.
  • Use one hand when probing higher voltages to reduce current path through the body.
  • Use only meters and probes with the correct CAT rating for mains work.
  • If the current jack fuse has blown, replace it with the specified type only.

Low-voltage versus mains

This lesson assumes extra-low-voltage electronics such as 3.3 V, 5 V, 12 V, or small battery systems. Measuring mains distribution panels, motor control cabinets, or unknown industrial wiring is a different discipline and requires appropriate training and equipment.

Common Mistakes

  • Leaving the red lead in the current jack, then trying to measure voltage.
  • Measuring current by touching the probes across a source.
  • Measuring resistance on a powered board.
  • Trusting continuity mode for sub-ohm precision; it is only a quick check.
  • Assuming a zero-volt reading means "no problem" without checking whether the circuit is actually powered.
  • Forgetting that in-circuit resistance readings can be distorted by parallel components.

Worked Example

Suppose a 5 V microcontroller board will not boot.

  1. Battery pack reads 5.1 V: source is present.
  2. Board input after reverse-polarity diode reads 4.4 V: unusually low.
  3. Voltage across the diode is 0.7 V: normal for a silicon diode.
  4. Voltage at the regulator output is 2.1 V: regulator is in dropout or overloaded.
  5. Power off and measure resistance from 3.3 V rail to ground: 8 ohm.

That last value is suspiciously low for a small MCU board and points toward a short or failed load on the 3.3 V rail.

Summary

A multimeter is useful because each mode answers a different question:

  • Voltage mode asks, "What is the potential difference here?"
  • Current mode asks, "How much charge is flowing through this path?"
  • Resistance mode asks, "How strongly does this path oppose current?"
  • Continuity mode asks, "Is there an electrically connected path at all?"

Correct mode selection, correct lead placement, and safe sequencing matter more than speed.
